7325圆边机


 产品详细

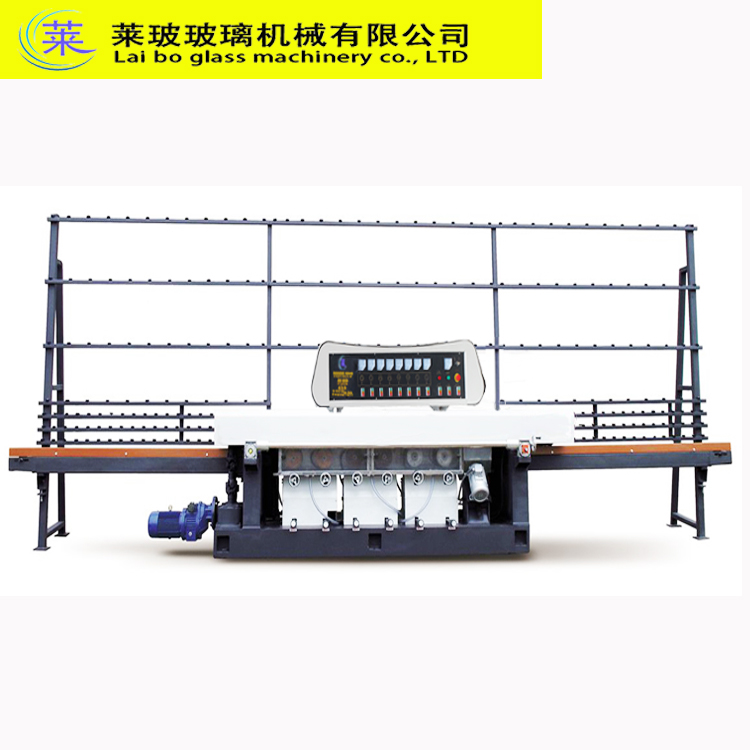

               LB-Y7325 4磨头圆边机
产品介绍:
LB-Y7325适用于不同尺寸和厚度的平板玻璃的直线圆边、鸭嘴边等,粗磨精磨抛光一次完成,抛光后的平面接近于玻璃母体的光洁度,调整不同加工厚度时,可参考前梁上数显表进行调整,前倒角磨头能随前梁同步移动,具有结构先进,精确高,操作方便,同一厚度可连续加工等优点,是玻璃加工必备的加工设备。
LB - Y7325 is suitable for different size and thickness of plate glass straight line round edge, the duck mouth, etc., a complete coarse grinding fine grinding and polishing, polishing the plane close to the glass matrix after finish, adjust the thickness of the different processing, may be adjusted on the reference beam before digital display table, before chamfering grinding head can move along with the former beam synchronization and has the advanced structure, high precision, easy to operate, the same thickness can the advantages of continuous processing, glass processing is the necessary processing equipment.

主要性能参数:
     型号/modelLB-Y7325
加工最大玻璃尺寸/The largest glass size:2500*2500mm
加工最小玻璃尺寸/The smallest glass size80*80mm
     整机功率/The engine power15.65kw
     加工玻璃厚度/The thickness of the glass processing3-20mm
     传送速度/Transmission speed0.5-6m/min
     电压/voltage380V/50HZ
     整机尺寸/The whole machine size7000*1000*2500mm
     整机重量/The weight3000kg
