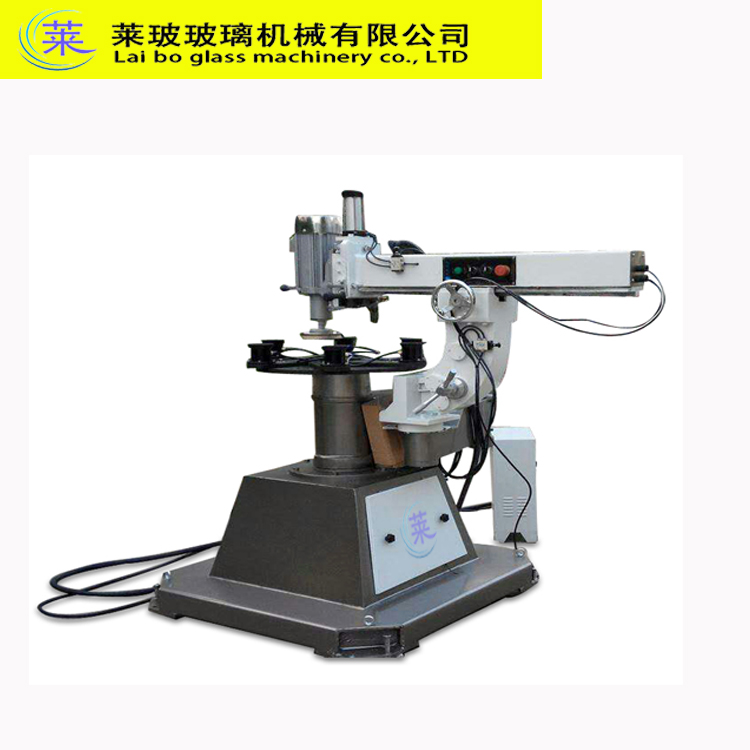

LB-1320内外圆异形机：
产品介绍：
LB-1320玻璃内外圆异形磨边机是普通异形机的基础上改进而来的一款新机型，它除了具备普通异形机加工不规则玻璃外边功能外，还能磨削内圆、内椭圆及各种异形内腔；采用真空将玻璃吸附在吸盘上，配电机驱动卫星转盘旋转，转盘旋转速度可在工作时任意调速；可安装两个磨轮进行粗磨和抛光。
Internal LB - 1320 glass abnormity edge grinding machine is modified on the basis of ordinary special-shaped machine, a new model, which in addition to have common abnormity machining irregular glass outside function, can also grinding inside the inner circle, ellipse, and various special-shaped lumen; Adopts the vacuum adsorption on the suction cups, glass with motor driven satellite rotate, rotate speed can be arbitrary speed at work; Can be installed two grinding wheels for coarse grinding and polishing.
主要性能参数：
型号/model：LB-1320
玻璃回转直径/Turning diameter glass：100-2100mm
玻璃厚度/The thickness of the glass：3-30mm
斜边角度/Bevel edge Angle：0-20°
斜边磨轮/Hypotenuse grinding wheel：∅150
整机功率/The engine power：3kw
电压/voltage：380V/50HZ
整机尺寸/The whole machine size：1300*1300*1700mm
整机重量/The weight：1000kg
|
