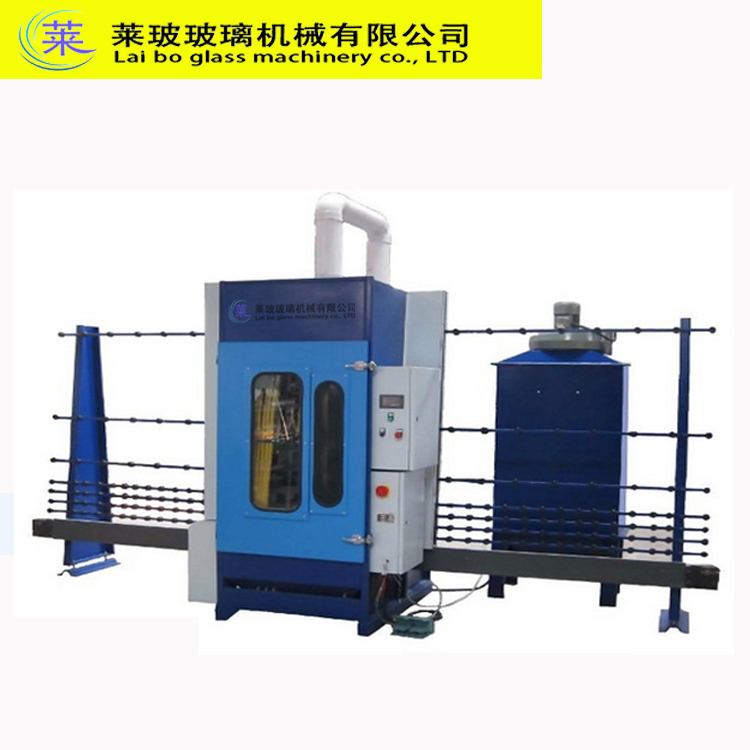

LB-P1600自动喷砂机
产品介绍：
1、操作简单：采用触摸屏操作，PLC控制，普通工人经过半小时学习即可熟练操作机器,并且有先进的自动控制系统可防止工人误操作；
2、生产效率高：一台冷冻喷砂机平均每天处理的量相当于50-80名熟练工人的喷砂工作量 ；
3、喷砂精度高：可以去除很微小又隐蔽的飞边，不受产品形状限制，合格率高且喷砂质量稳定；
4、输送方式：采用两条同步带输送，不易带砂到机体外；
5、不损伤制品表面：采用特殊材料喷嘴，提高适用寿命，提高产品外观质量，增加产品的使用寿命；
6、占地少：一台玻璃喷砂机加上附属设备只需10平方米；
7、吸尘效果：采用自动收集粉尘，过滤布袋上灰尘清理，采用反吹气方式；
8、适用成本和维护成本低。
1, the operation is simple: the touch screen, PLC control, ordinary workers after half an hour to learn can operate the machine, skilled and have advanced automatic control system can prevent the workers wrong operation;
2, high efficiency: a frozen sand blasting machine processing a day on average equivalent to 50-80 skilled workers sandblasting workload;
3 high precision, sandblasting, can remove is very small and hidden flash, without being limited by the product shape, high pass rate and the sand quality stability;
4, transportation mode: the two synchronous belt transmission, not easy to bring sand to the outside of the body;
5, no damage to the goods surface: the use of special material nozzle, improve the service life, improve the quality of product appearance, increase the service life of the product;
6, covers an area of less: a glass sandblasting machine and ancillary equipment only 10 square meters;
7, vacuuming effect: the automatic collecting dust, filter bag dust cleaning, adopt the way of blowing;
8, suitable cost and maintenance cost is low
主要性能参数：
型号/model：LB-P1600
自动喷枪/Automatic spray gun：3PCS
手动喷枪/Manual spray gun：1PCS
加工最大玻璃尺寸/The largest glass size:1600*30000mm
整机功率/The engine power：3.5kw
加工玻璃厚度/The thickness of the glass processing：3-50mm
喷砂速度/Sand blasting speed：20-25m²/h
压缩空气流量/The compressed air flow：3m³/min 22kw
压缩空气压力/The compressed air pressure：0.6-0.8Mpa
电压/voltage：380V/50HZ
整机尺寸/The whole machine size：4700*1500*2300mm
整机重量/The weight：1000kg
|
