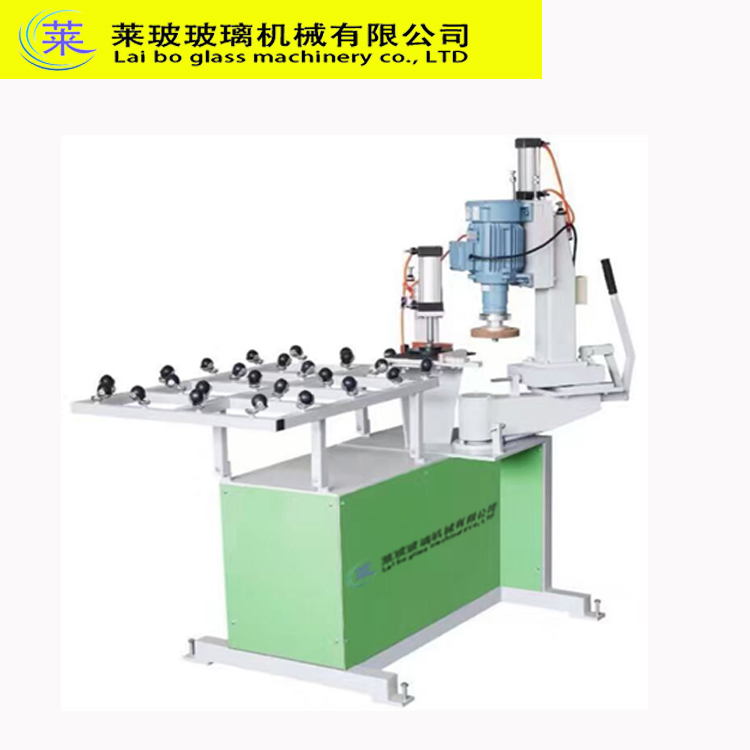

玻璃倒角机
产品介绍：
本机采用厚实钢板焊接而成，退火加工成型，可气动可吸盘压稳平板玻璃，可将玻璃直角修形为：圆边、方边、鸭嘴边等等。可气动升降磨头，可同时装两个磨轮进行粗磨、精磨及抛光。
This machine is made of thick steel plate welding and become, annealing processing molding, can be pneumatic chuck pressure plate glass, glass can be right Angle modification: round, square edge, the duck mouth and so on. But pneumatic elevation grinding head, but at the same time two grinding wheels for coarse grinding, fine grinding and polishing.
主要性能参数：
型号/model：LB-1350
玻璃厚度/The thickness of the glass：3-20mm
倒角R角/Chamfering R Angle：R5-R70
加工最大玻璃尺寸/The largest glass size:2200*2700mm
整机功率/The engine power：2.2kw
电压/voltage：380V/50HZ
整机尺寸/The whole machine size：1500*1300*1600mm
整机重量/The weight：300kg
|
