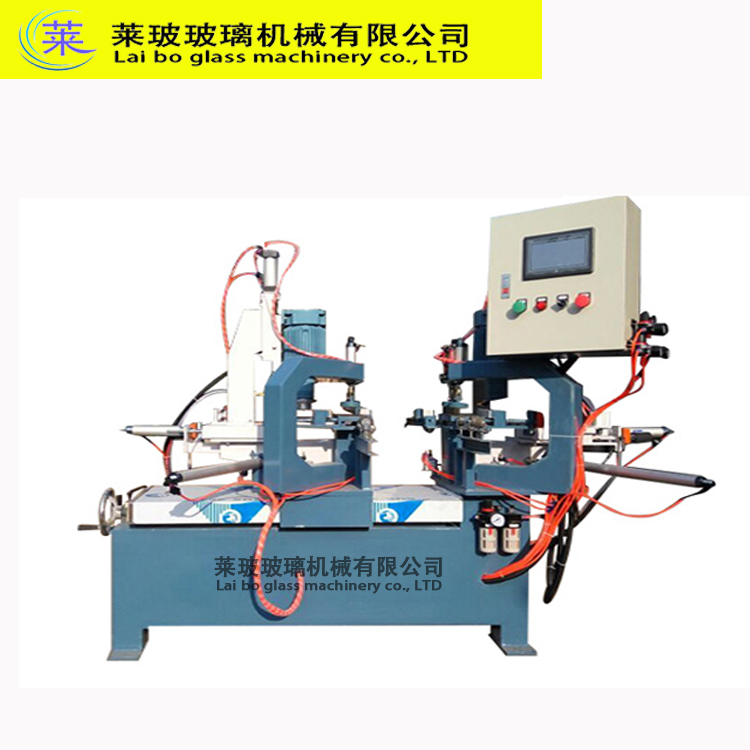

双头气动玻璃倒角机
产品介绍：
玻璃气动双头倒角机是在由机体、外角倒角工作台、定位托台、内角倒角工作台、内角转动刀头、外角转动刀头、电动机和传动机构组成，采用气动压稳平板玻璃，可将玻璃直角修成为：圆边、鸭嘴边、方边。可气动升降磨头，可装1~2个磨头进行粗磨、精磨及抛光。一次性可倒2个角，大大提高了工作效率，不需要人工推动，减轻了工人的劳动强度。
Glass pneumatic double-headed chamfering machine is a by the body, outside chamfer workbench, positioning platform, inside chamfer workbench, an internal Angle rotating cutter, outside the rotation, motor and transmission mechanism of the cutting tools, using pneumatic pressure plate glass, glass can be rectangular repair become: round edge, the duck mouth, square edge. Pneumatic lifting grinding head, can install 1 ~ 2 head for coarse grinding, fine grinding and polishing. One-time can pour 2 Angle, greatly improving the work efficiency, do not need artificial, reduce the labor intensity of the workers.
主要性能参数：
型号/model：LB-1002
玻璃厚度/The thickness of the glass：3-20mm
倒角R角/Chamfering R Angle：R5-R60
加工最大玻璃尺寸/The largest glass size:1050*2100mm
加工最小玻璃尺寸/The smallest glass size：250*250mm
整机功率/The engine power：2.2kw
电压/voltage：380V/50HZ
整机尺寸/The whole machine size：1100*1400*1600mm
整机重量/The weight：400kg
|
